Skyteks Soft
The next generation of fabric pergola
SKYTEKS Soft combines the strong aluminum frame of Tenteks bioclimatic systems with a fabric mechanism that opens and closes (RTS system). The result: a pergola with a soft-looking fabric roof that gathers at the push of a button and extends again when you need shade.
The fabric provides full sun protection and partial protection from other weather. The frame is made of aluminum profiles 6063-T6, with perimeter gutters and drainage through the columns – the same engineering as the Skyteks series.
Dimensions – SKYTEKS Soft
| Width (W) | Depth (P) | Structure height (H) | Clearance height (H1) | |
|---|---|---|---|---|
| Size range | 100–400 cm | 100–800 cm | 42 cm | 220–300 cm |
Single module without a middle column: 400×600 cm (24 m²). With a middle column: 400×800 cm (32 m²). For larger areas, several modules are joined with connectors and a shared drainage system. Dimensions according to the Tenteks catalog.

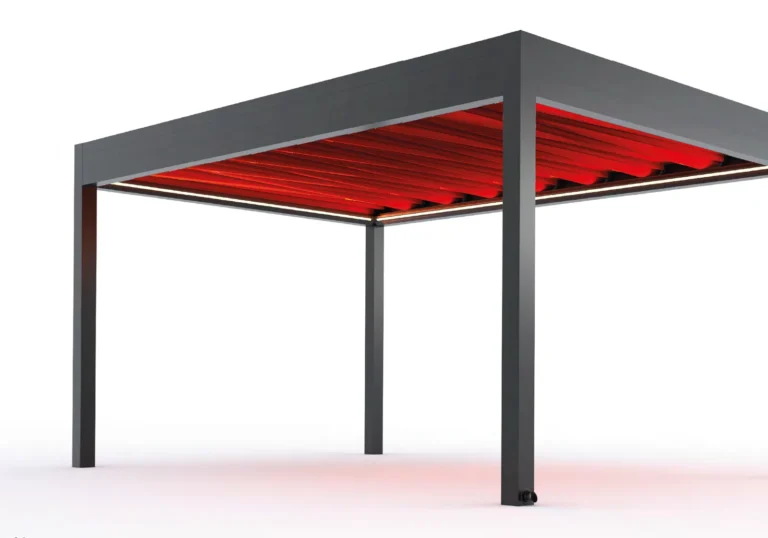

Renderings – SKYTEKS Soft
Tensioned fabric with directed drainage
The fabric extends with a slope in one direction, so rainwater is channeled to the gutter instead of pooling on the fabric. The structure also helps create pleasant ventilation under the pergola.
Precise, elegant integration
Profiles and connectors designed specifically for the aluminum frame ensure a clean look and simple installation. Perimeter LED lighting (single-color or RGB) and a range of frame colors can be added.
More space, fewer columns
A single module reaches400×600 cm (24 m²) without a middle column. In a wall-mounted installation, the system can be connected directly to the house facade, with a bracket or an extended bracket – saving columns on the wall side.
Technical details – SKYTEKS Soft
The frame, mechanism and fabric were designed together for strength, efficient drainage and quiet operation for years. These cross-sections are from the Tenteks catalog.

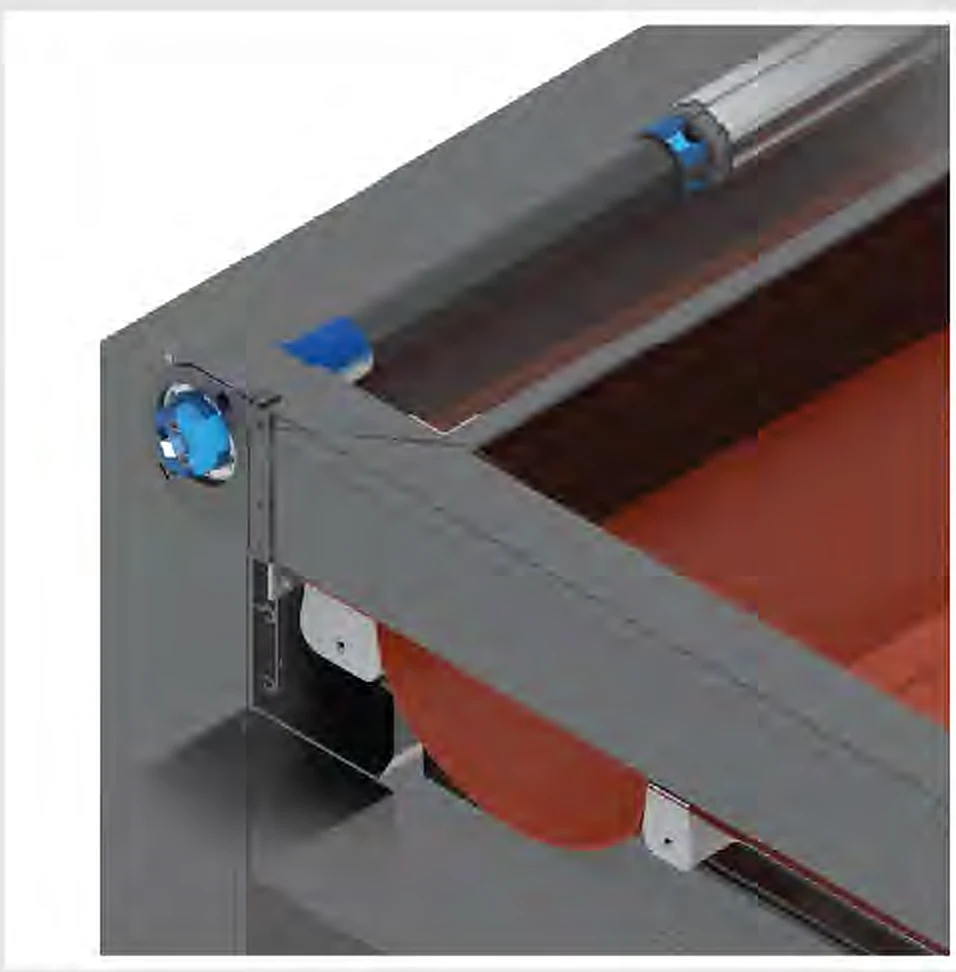

Rear section and motor
A motor tube with a special cross-section that prevents bending over wide spans, and a high IP-rated tubular motor with quiet operation, overheating protection and precise limit setting.

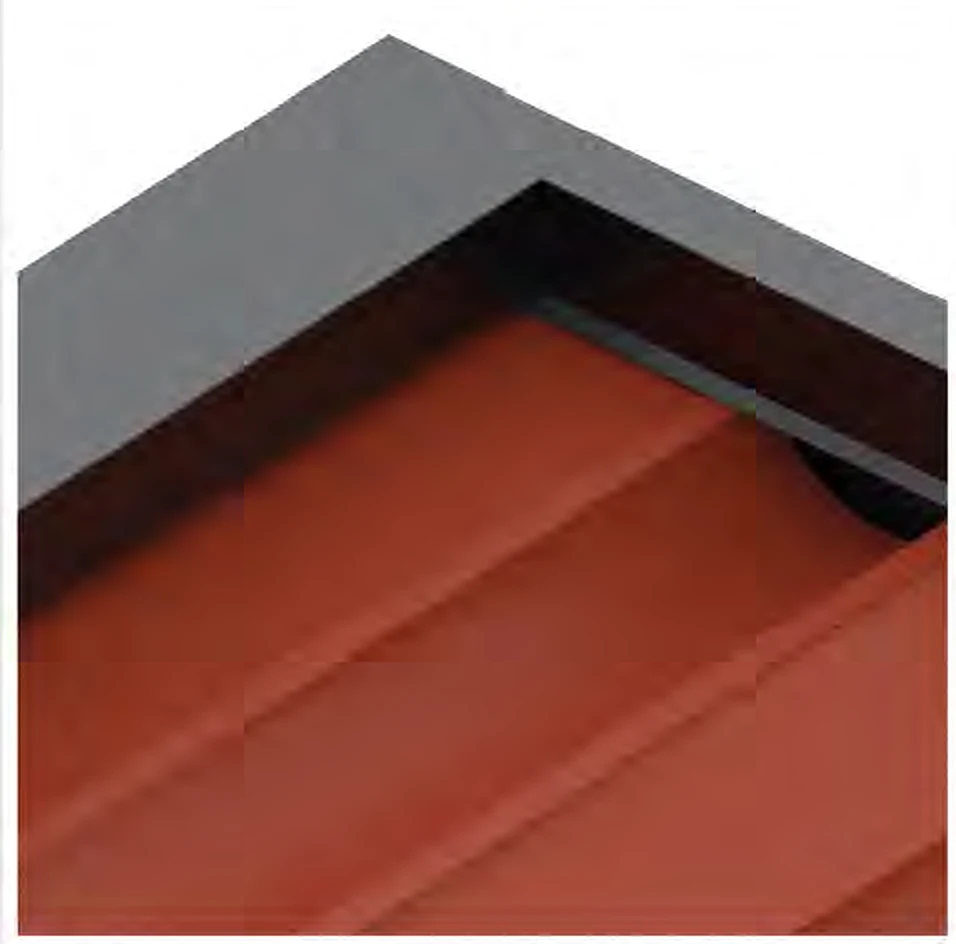

Integrated enclosure system
Dedicated closing profiles and panels around the system protect all moving parts from dust, leaves and rain, and hide the technical details from view.

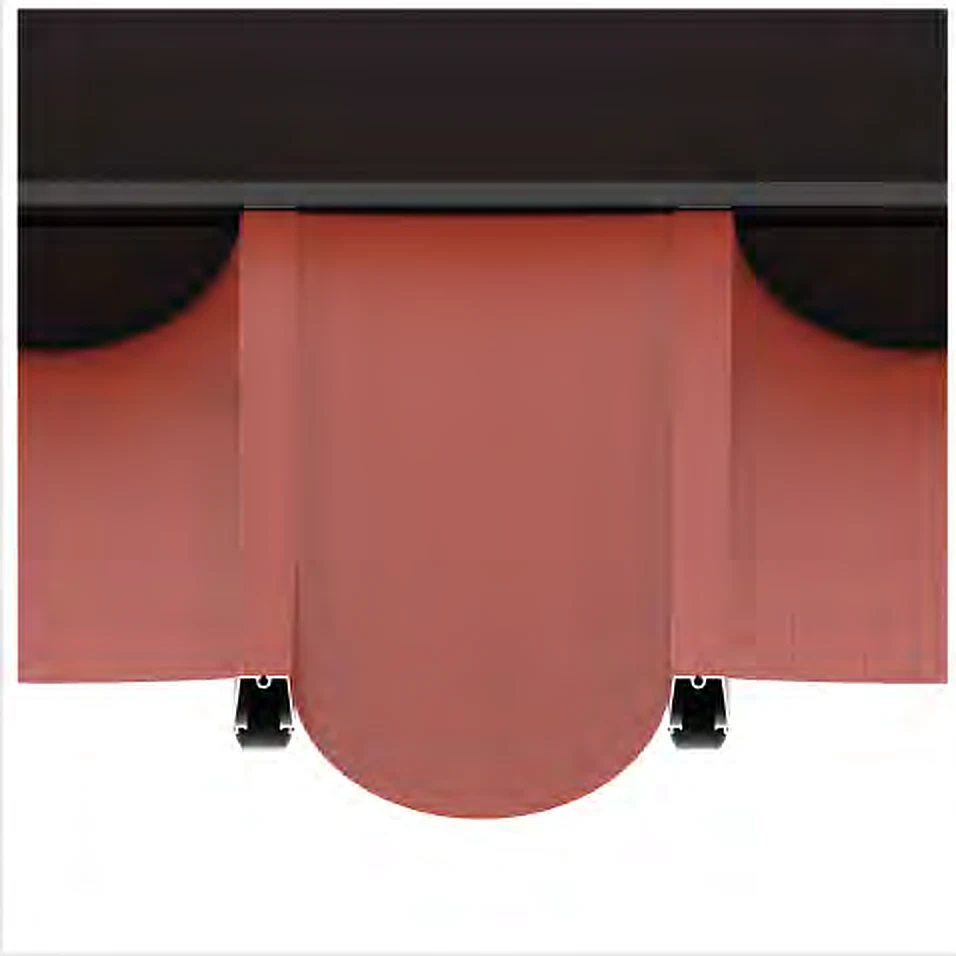

Fabric section
One side of the fabric is tensioned in a controlled way and the other is shaped to channel rainwater evenly into the gutters on both sides – with no water pooling on the fabric.

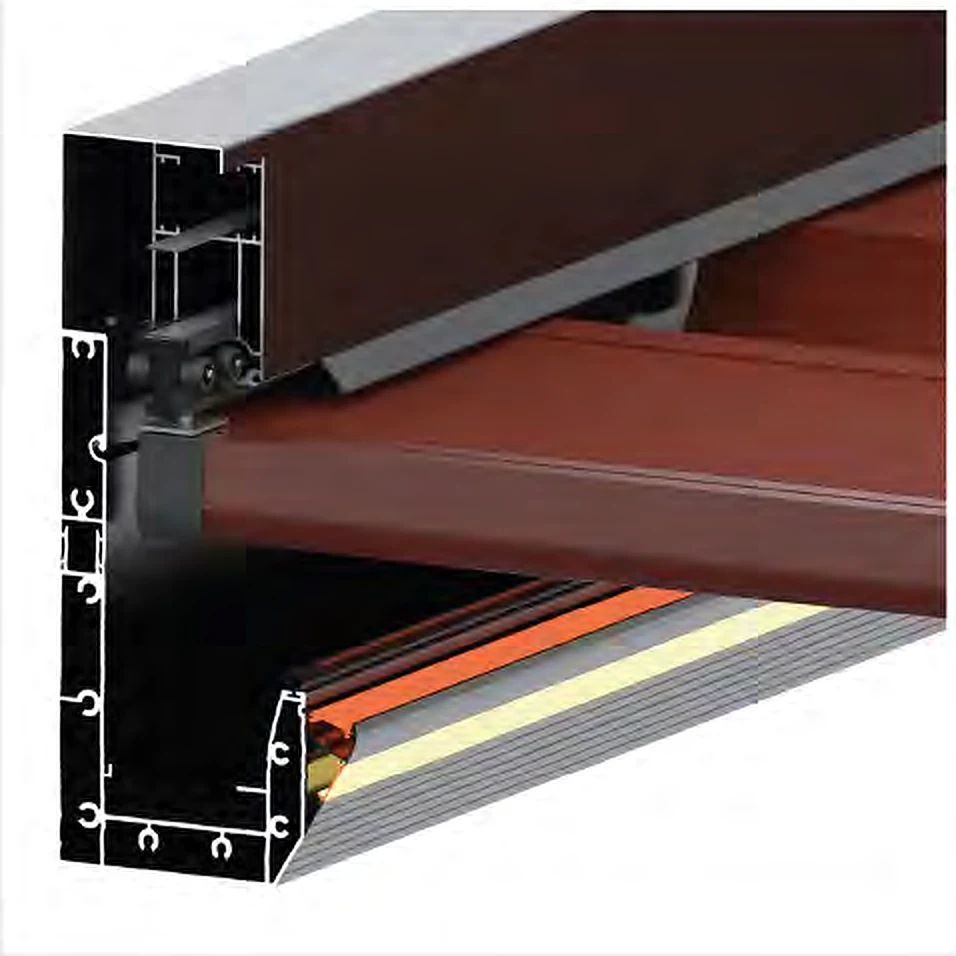

Side section
A double-walled gutter integrated with the 1300 rail and designed cover panels. The rail seals limit water penetration where the fabric is tensioned.

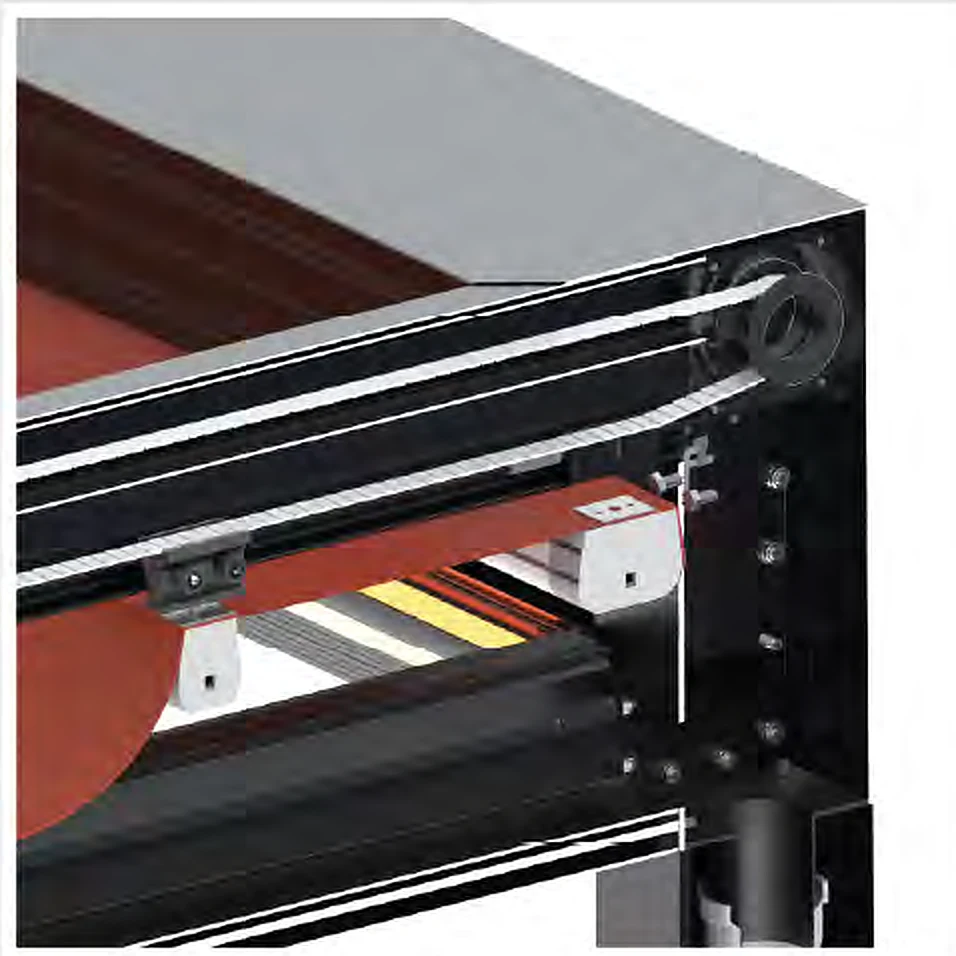

Timing belt
The fabric is moved by a high-strength timing belt and a dedicated drive carriage along the side rails – for synchronized, smooth and reliable power transfer.

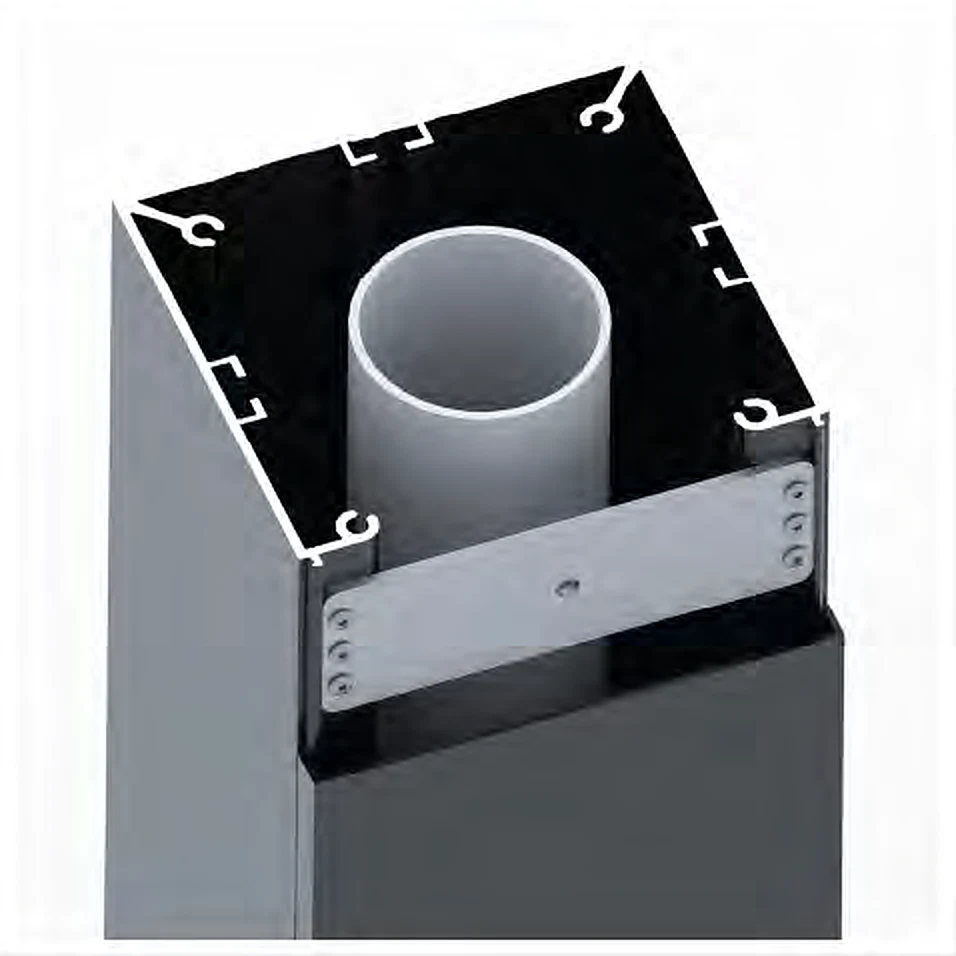

Column profile
Column weighing 5.5 kg per meter with a cover that hides the anchoring, connections and drainage, and steel reinforcement along its length.

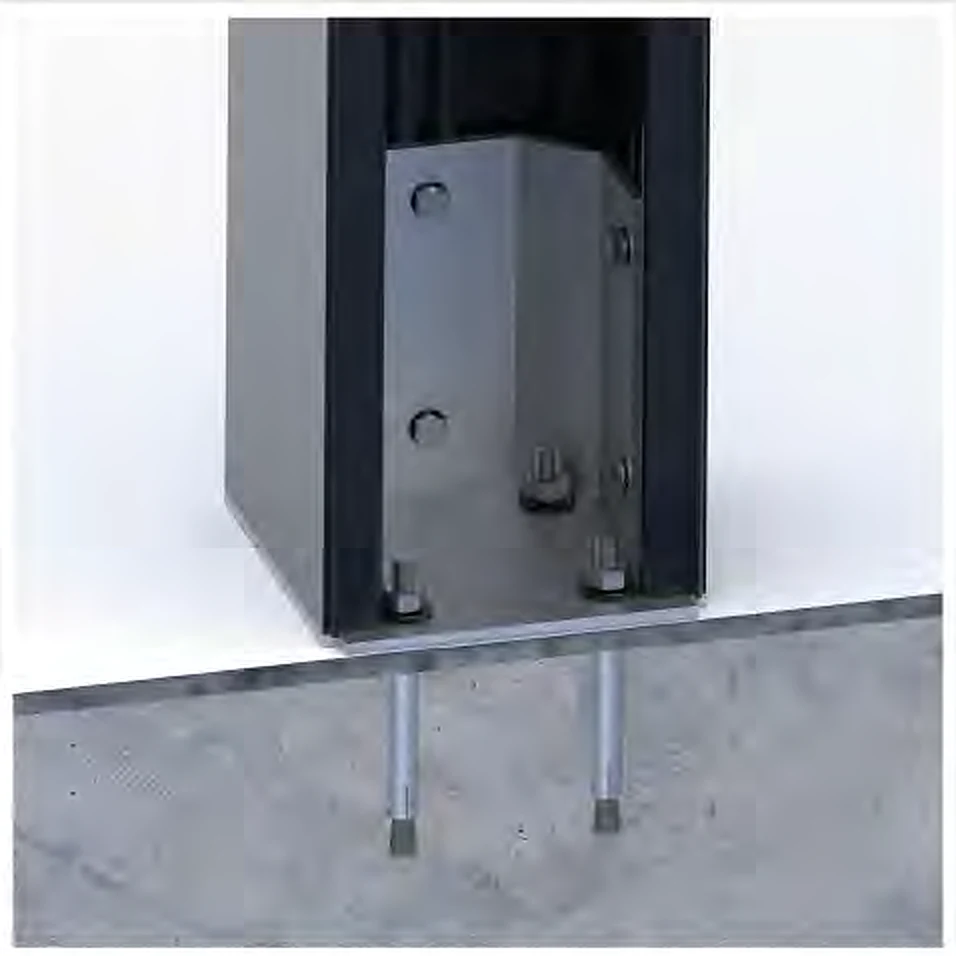

Ground connection
A reinforced steel flange with hidden anchors, fixed to the column at six points for even load distribution and long-term stability.
Corner connectors
Connectors for single, double or quadruple systems, with seals and stainless steel bolts – a strong, sealed connection, with drainage possible through any of them.

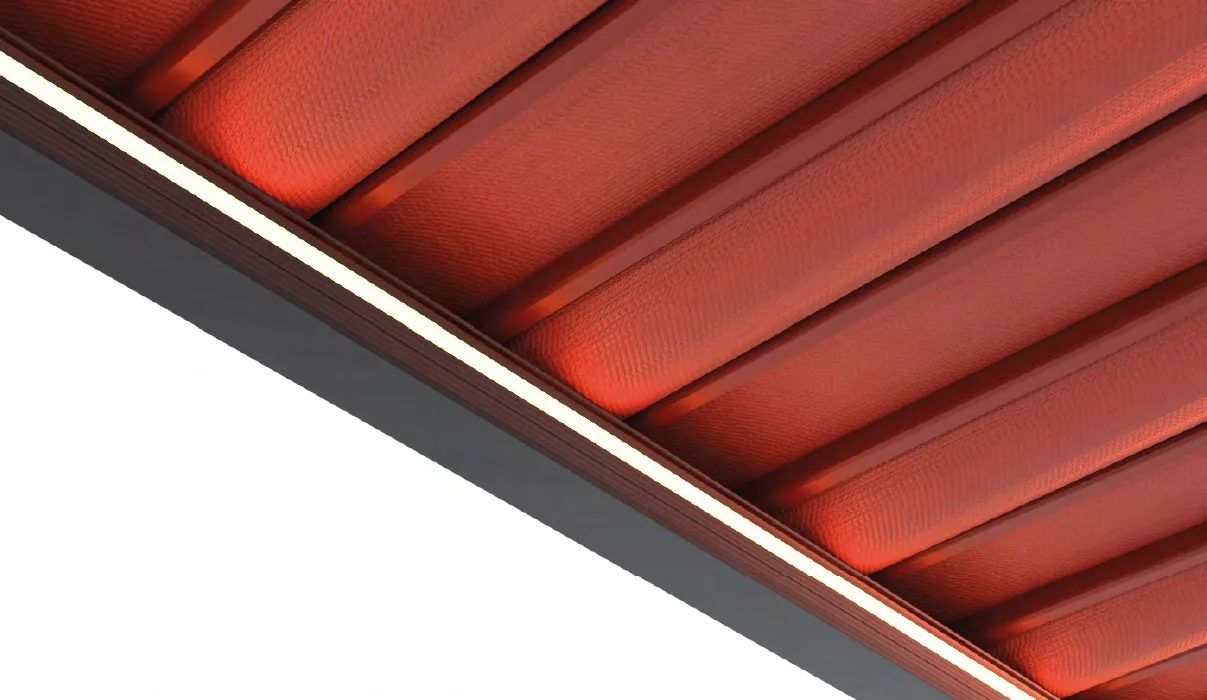

Lighting profile
Single-color LED (2700K–6500K) or RGB in a dedicated profile that lights the space and the fabric.
Want to see how it will look at your place?
Design your pergola online and get a price estimate, or talk to us directly on WhatsApp – we will gladly advise which model suits your space.
Frequently Asked Questions
What is SKYTEKS Soft?
An electric pergola by Tenteks with an aluminum frame and a fabric roof that extends and retracts (RTS system) – a soft look with protection from sun and rain.
Does the fabric roof protect from rain?
Yes. When the fabric is extended, water drains through the pergola’s drainage system. Leaks can only occur at the seam between the pergola and the wall it is mounted on.
What is the warranty?
5 years on the mechanical system, the motor (excluding the piston motor) and the fabric; 2 years on lighting and maintenance; 1 year on insulation and sealing.
How much does it cost?
The price depends on the area, roof type, motor and add-ons (lighting, side enclosures). You can get an estimate with our online design and pricing tool, and a final price after measurement.
